Weather Station Professional
This is a professional fixed weather station designed to deliver reliable and accurate environmental monitoring. With enhanced sensors and customizable options, it perfectly meets the needs of commercial, industrial, educational, and government applications. You can freely configure it to monitor wind speed, wind direction, rainfall, UV radiation, solar radiation, atmospheric pressure, temperature, humidity, noise, light intensity, soil moisture, and more. Integrated and ultrasonic weather station models are also available.
- Model: RS-QXZM-*-DC-12-ETH-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $1123
View - Fixed Weather Monitoring Station
This automatic weather station consists of various meteorological sensors, a monitoring host, and a power supply system to support weather and climate research at specific locations. Manufactured according to international meteorological standards, it accurately measures parameters such as wind speed, wind direction, atmospheric pressure, temperature, rainfall, and so on. With our professional weather station, you can instantly access critical local weather data whenever you need it.
Description
The outdoor weather station features a high-strength carbon steel support pole, providing excellent wind resistance and durability. All meteorological sensors, monitoring hosts, and power units are connected via waterproof plug-in cables, allowing two people to complete installation within ten minutes.
All wiring runs internally through the pole, effectively preventing UV radiation and insect damage to the cables. A powder-coated metal control box protects the host and power equipment, ensuring resistance to sunlight and corrosion. An optional 60W solar panel can fully charge a 38Ah battery in just 7.5 hours under adequate sunlight. Each device in the station operates independently and communicates separately, enabling quick identification of any malfunctioning component.
Our professional weather station is your ideal choice for obtaining reliable, real-time meteorological data.
Parameters
| Measured | Measuring range | Precision |
|---|---|---|
| Humidity | 0%RH~99%RH | ±3%RH(60%RH,25℃) |
| Temperature | -40℃~+120℃ | ±0.5℃(25℃) |
| Atmospheric pressure | 0-120kPa | ±0.15kPa@25℃101kPa |
| Soil temperature | -40~80℃ | ±0.5℃ (25℃) |
| Soil moisture | 0~100% | ±2% within 0-50%, ±3% within 50-100% |
| Soil conductivity | 0-20000ug/cm | ±3%(range 0-10000μS/cm); ±5%(range 10000-20000μS/cm) |
| Wind speed | 0-60m/s | ±(0.2+0.03V)m/s |
| wind direction | 0~360° | ±1° |
| Noise | 30dB~130dB | ±0.5dB(at reference pitch, 94dB@1kHz) |
| Illuminance | 0~200000Lux | ±7%(25℃) |
| Rainfall | 0mm～4mm/min (max. rain intensity 8mm/min) | ≤±4% |
| PM2.5/PM10 | 0-1000μg/m³ | ±3%FS(@0~100μg/m3, 25℃, 50%RH) |
| Solar radiation | 0-2000W/m² | ±3% |
| CO2 | 0-5000ppm | ±(50ppm+ 3%F·S) (25℃) |
| Parameters | Range | Description |
| Communication Interfaces | RJ45 Ethernet Port | Data upload via Ethernet port |
| ModBus-RTU Slave Interface | Supports external devices to query data from the weather station. | |
| Data Acquisition Interface | RS485 Interface | Capable of acquiring data from 1-32 RS485 sensors, with a max. distance of ≥1500m. |
| Storage Capacity | 520,000 records | Built-in storage |
| Power supply | External Power Supply | 220V AC |
| Dual Power Supply | 220V AC Mains and Solar Panel | |
| Solar Power Supply | 60W Solar Panel |
Features
- This weather station is equipped with one ModBus-RTU master interface, allowing connection to our company’s RS485 sensors such as wind speed sensor, wind direction sensor, soil temperature and moisture sensor, soil pH sensor, temperature and humidity sensor, noise sensor, air quality sensor, barometric pressure sensor, light sensor, rain and snow sensor, UV sensor, solar radiation sensor, CO₂ sensor, evaporation sensor, and negative oxygen ion detector. It also supports customized combinations of other 485 sensors according to the monitoring site’s requirements, offering flexible multi-parameter measurement options.
- Supports connection to a tipping-bucket rain gauge for monitoring total rainfall, instantaneous rainfall, daily rainfall, and current rainfall.
- Provides two relay outputs, which can be linked to any signal channel for alarm or automatic control.
- Equipped with one RJ45 Ethernet port for data transmission to a monitoring platform.
- Includes one ModBus-RTU slave interface for connection to the user’s own host, PLC, or SCADA system.
- Supports an external outdoor single-color LED display (default 96×48 dot matrix, up to 1024×256).
- Compatible with solar panels and batteries for field applications, ensuring reliable power supply.
- Supports dual power supply (AC and solar) to guarantee stable operation under harsh environmental conditions.
- Each device has a unique 8-digit address for easy management and identification, with centralized data management via our free cloud platform.
Application

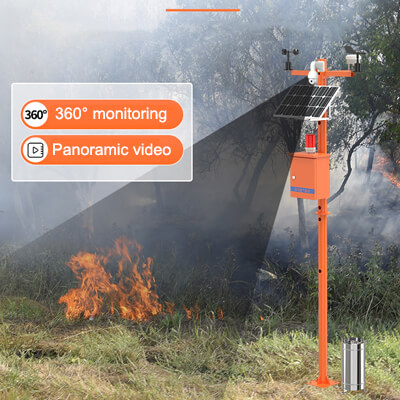

Forest weather station (fire prevention)
Among the meteorological elements, factors such as precipitation, air temperature and humidity, wind speed and direction, and atmospheric pressure have a significant impact on the occurrence of forest fires. This forest weather monitoring station designed by our company can measure wind speed, wind direction, temperature and humidity, rainfall, and atmospheric pressure in real time. A high-definition camera is installed on the top to view the real scene. This weather monitoring station also has a voice broadcast function, which can be used for voice broadcast reminders when people or vehicles enter the sensing area. The overall design of the forest fire prevention weather station is orange, which has a bright and eye-catching effect during outdoor use.

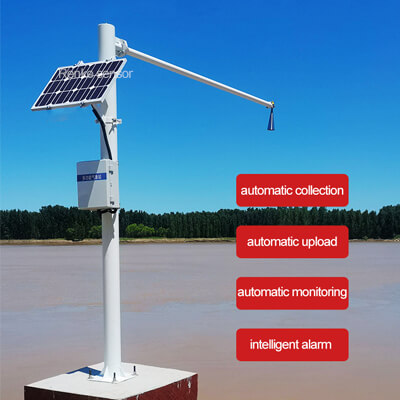

Water level monitoring station
As important water conservancy infrastructure, rivers, reservoirs, and dams will also bring potential safety hazards to related areas due to the risk of dam breaks and floods caused by their own safety. The water level monitoring station developed by our company monitors wind speed, wind direction, temperature and humidity, noise, air quality, atmospheric pressure, light, rain and snow, rainfall and liquid level in real time. Timely reflect the total rainfall, instantaneous rainfall, daily rainfall, current rainfall and real-time liquid level value. Remind the staff to take timely measures. Measurement data is uploaded to the cloud platform in real time, enabling remote monitoring.
FAQs - Weather Monitoring Station
How does this pole-mounted weather station work?
A solar panel or LED display can be optionally installed at a distance of 20 cm below the beam to form a closed-circuit power supply system or display current measurement data in real-time. This part can be flexibly selected according to your needs. Further down 5 cm is the waterproof box, which is equipped with an environmental monitoring host, which inquires the value of the sensors every 2s, and through the rj45 network uploads the data to our free cloud platform. Customers can view the data via APP or PC remotely. Our cloud platform has an over-limit alarm function, which can send you alarm information in time via SMS or email.
Why choose our weather monitoring stations?
- Professional brand: Renke has 15 years of experience in weather sensors manufacturing and is the Chinese top one manufacturer of environmental monitoring equipment. With a professional R&D and technical team, the product variety is rich, and it supports customer customization.
- More types: Provide a variety of agricultural or industrial meteorological stations, weather sensors with various output methods. You can freely match sensors according to your needs. Wide measurement range.
- Free platform: In order to facilitate customers to view data in real-time, Renke has developed a variety of data platforms, which can be viewed through various methods such as computers, iPad, and mobile phones. All are provided to users for free.
- Cheap price: We have a complete production scale and controllable cost. The price range of meteorological stations for you is $161~$1037, and the price of the same type of meteorological stations is much lower than the average market price. It can save you at least 40% of your budget.
- Fast delivery: We have sufficient stock and can guarantee delivery within 24 hours after payment. Welcome to inquire.
How to choose a weather station?
The choice of weather monitoring station must first consider the place of use. If you want to monitor the weather in a remote environment, it is recommended that you choose an ethernet outdoor weather monitoring station. Use high-strength poles to fix various sensor elements, and use solar panels to supply power, and wifi signals to upload data.
If you want to monitor the weather in the courtyard or farm, you can supply power from the mains and upload data through wifi or RS485 connection. If you don’t like the cumbersome installation process, you can choose our portable weather monitoring station or ultrasonic weather monitoring station. They are an integrated structure, which avoids the trouble of installing sensor elements.
How to set up a weather station?
Please check this detailed video.
Where are the professional weather stations used?
Meteorological stations application in reservoirs, farmland, pastures, campuses, highways, and construction sites to measure rainfall, soil moisture, light, temperature and humidity, rain and snow, particle concentration, and other meteorological elements. You can view the latest and most accurate data in real-time.
What are the advantages of this pole-mounted weather monitoring station?
Strong resistance to harsh environment
Strong corrosion resistant ability
High accuracy
Automatic storage and backup
Convenient data download
All-metal construction of bracket
Support customer secondary development
Free cloud platform
My outdoor sensor is exposed to rain. Will that damage it?
Most external sensors are waterproof! The high-strength shell can effectively prevent rain and snow erosion. Some accessories, such as the host and negative oxygen ion detector, are not waterproof. When used outdoors, they should be placed in a special waterproof box.
Can the display also be read in the dark?
The LED meteorological station uses a high-definition large-screen display, and the values are also very clear in the dark.
What are the types of weather stations from Renke?
In addition to this professional weather monitoring station, we also provide portable weather monitoring stations, integrated weather monitoring stations, handheld weather monitoring stations, ultrasonic weather monitoring stations and PV weather monitoring stations.
Can I view the data online?
Yes. we offer free cloud platform for you. You can log in to view data. You can also share your weather data with friends and family by creating sub-accounts. Support to view data through a computer or mobile app.
What is the warranty period?
The Renke meteorological station enjoys a two-year warranty. Unless the weather monitoring station is damaged by humans and operating errors, the equipment will be protected when it is used in a normal environment. The scope of the warranty includes sensors, host, power supply and signal lines, etc.
