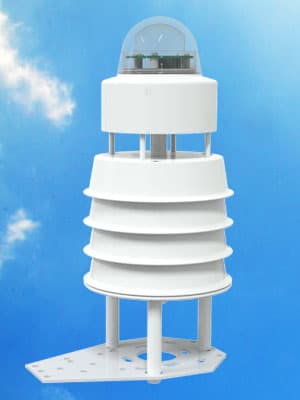

Integrated Weather Station
It is a low cost weather station that is suitable for customers to conduct short-term or long-term environmental monitoring and data recording in different locations. The integrated weather station is small in size, light in weight, the outer shell is made of high-quality anti-ultraviolet materials, and has a long service life. The bottom is equipped with a high-sensitivity probe, the signal is stable and the measurement accuracy is higher.
- Model: RS-FSXJT-N01-1-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $109.1~$192.9
All types of weather station we offered
Why choose our integrated weather station?
The design integrates the functions of seven sensors, which can simultaneously measure multiple elements such as temperature, humidity, PM, noise, atmospheric pressure, wind speed, and wind direction. The key components of the portable weather station are imported components, which are stable and reliable, with high water resistance, and can be used in a variety of harsh environments. The measurement data can be uploaded to our free data platform or the customer’s own platform through RS485 signal transmission.
Integrated weather station features
1. The integrated design of multiple collection devices is adopted, which is easy to install.
2. Wind speed and direction structure and weight have been carefully designed and distributed respectively, with a small moment of inertia and sensitive response
3. Noise collection, accurate measurement, range up to 30dB~120dB.
4. PM2.5 and PM10 are collected at the same time, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data collection, and automatic calibration technology, the consistency can reach ±10%.
5. CO2 range: 0-5000ppm, resolution 1ppm.
6. Measuring the environmental temperature and humidity, the measuring unit is imported from Switzerland, and the measurement is accurate.
7. Wide range 0-120Kpa air pressure range, applicable to various altitudes.
8. Using dedicated 485 circuits, stable communication, 10~30V wide voltage range power supply.
Integrated weather station use
The portable weather station is simple to install. Install the wind speed and direction sensor on the fixed bracket and connect the wire to complete it. Users can freely match sensor modules according to their needs. This integrated weather station has a high degree of protection and can be used outdoors for a long time.
RS-FSXJT-N01-1-EX portable weather station is suitable for campuses, houses, churches, gardens, office buildings, and other places that require simple installation or small space. The device can be installed on the top of the building to prevent obstructions from affecting the measurement accuracy.
Integrated weather station datasheets
| Power supply | 10-30VDC | |
| Max. power consumption | RS485 Output | 0.8W |
| Measuring range | Wind speed | 0~60m/s |
| Wind direction | 8 directions | |
| Humidity | 0%RH~99%RH | |
| Temperature | -40℃~+120℃ | |
| Atmospheric pressure | 0-120Kpa | |
| Noise | 30dB~120dB | |
| PM10 PM2.5 | 0-1000ug/m3 | |
| CO2 | 0-5000ppm | |
| Accuracy | Wind speed | ±0.3m/s |
| Humidity | ±3%RH(5%RH~95%RH,25℃) | |
| Temperature | ±0.5℃（25℃） | |
| Atmospheric pressure | ±0.15Kpa@25℃ 101Kpa | |
| Noise | ±0.5dB | |
| PM10 PM2.5 | ±3%FS(@100μg/m3,25℃,50%RH) | |
| CO2 | ±(50ppm+ 3%F·S) @(25℃,400~5000ppm) | |
| NOTE:PM2.5&PM10 and CO2 cannot be selected at the same time, please note that PM or CO2 is required when placing the order | ||
