Soil Analyzer
It is an intelligent handheld soil data logger. Usually, it is used with different soil sensors, such as soil moisture sensor, soil temperature and humidity sensor, soil three-in-one sensor, soil NPK sensor, soil ph sensor, or multi depths soil moisture meter. This soil analyzer can store 100W data at a time. A built-in rechargeable battery can be used repeatedly, cost-effective. The soil analyzer comes with a suitcase, which can be carried with you and has high mobility. This is soil testing equipment that is very worth buying.
- Model: RS-TRREC-N01-1-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $136.3~$187
Soil analyzer description
Soil analyzer features
1. This soil recorder use very simply. Connect the soil sensor and insert the probes into the soil, the display screen can directly show the measurement result, which is simple and convenient, with low measurement cost and fast measurement speed.
2. The design of the soil analyzer is small and light, so you can easily put it in your toolbox. Connect with our 7 in 1 soil sensor, it can measure soil temperature, humidity, ph, conductivity, nitrogen, phosphorus and potassium all in one.
3. Large-size color display screen is convenient for users to read. Large-capacity storage can store up to 1,000,000 data at a time.
4. The measurement data can be exported to the computer through the USB interface, which is convenient for users to view and export historical data.
5. The rechargeable soil analyzer uses a built-in lithium battery with a standby time of more than 8 hours.
6.Full English interface, one year warranty for the whole handheld soil data logger.
Soil analyzer advantages

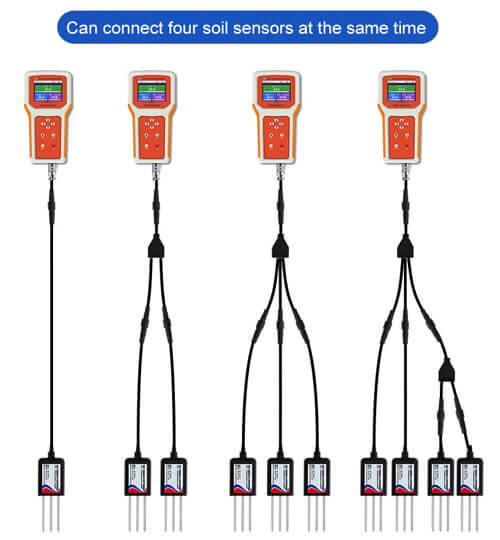

It can connect up to four soil sensors, which can detect seven common elements such as temp, moisture, EC, PH. This is a recommended soil tester, which integrates multiple elements and displays them together, and has a powerful data storage function. Adopt a big colorful LCD display .
Our soil analyzer adopts the latest digital integrated circuit technology and international detection technology design, with very high sensitivity and excellent repeatability. And the soil analyzer integrates storage, recording, and analysis, to realize the measurement of various soil parameters.
Soil analyzers are widely used in soil pH detection, dry farming and water-saving irrigation, precision agriculture, forestry, geological prospecting, plant cultivation, water conservancy, environmental protection and other fields, as well as the measurement of a single element or multiple elements of soil.
Soil analyzer parameters
Power supply: Battery-powered (5000mAh lithium battery)
Display method: 2.8 inch LCD display
Data storage: 100W data
Charging time: ≤8h
Working environment: Temperature -10℃-50℃, humidity<95%RH no condensation
Accessible equipment: 1-4 ModBus device combination
Letter of agreement: Modbus-RTU
Operating Voltage: DC 3.7V
Standby time: More than 8h continuous
Size: 209*100*36 mm
Weight: 500g
Soil analyzer details
The handheld soil data logger and various soil sensors are connected by a plug-in connection, which can be completed in a few seconds, very simple. You can freely set the alarm value of the handheld soil data logger, measurement upper and lower limits, equipment address and other parameters. The language of the soil data logger is available in English and Chinese, which is convenient for customers to use.
