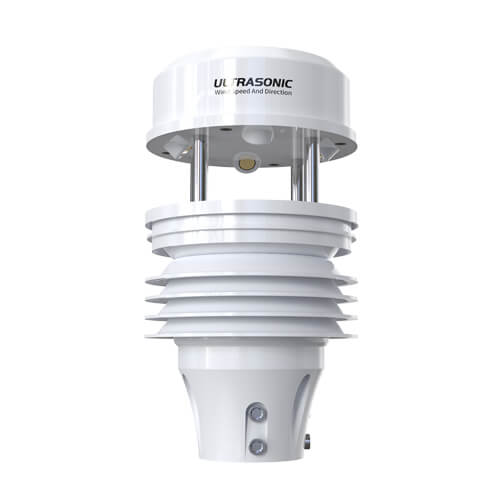

Smart Ultrasonic Weather Station
RS-FSXCS-N01-3-EX Smart ultrasonic weather station is the only integrated weather sensor that can calculate wind speed, wind direction, air pressure, air temperature, relative humidity, rainfall, and PM concentration. Using ultrasonic principles and optional internal electronic pointers, the true wind speed and direction can be calculated. The UV-resistant and stable compact housing are completely waterproof and corrosion-resistant.
- Model: RS-FSXCS-N01-3-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: USD 227.10
About - Smart ultrasonic weather station
Description

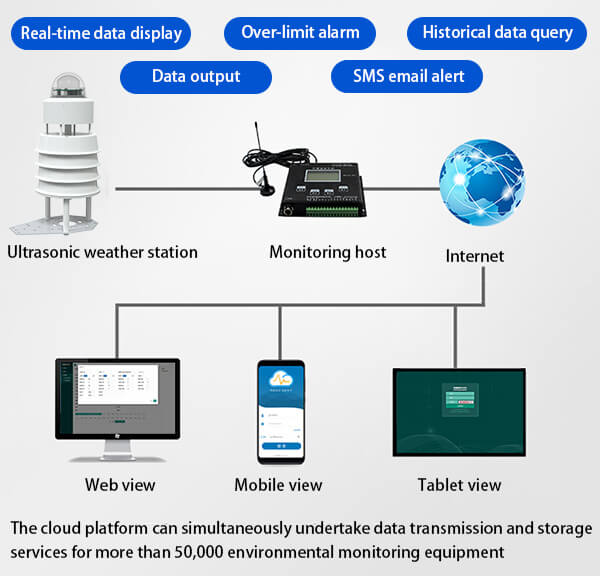

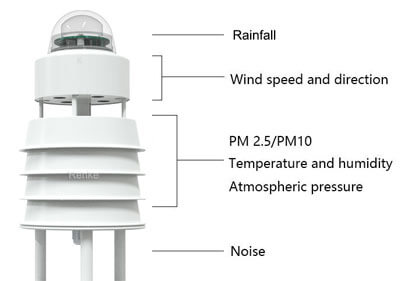

This smart ultrasonic weather station can be widely used in outdoor meteorological environment detection. It can integrate wind speed, wind direction, temperature, humidity, noise, PM2.5 and PM10, atmospheric pressure, and rainfall. The equipment adopts standard MODBUS-RTU communication protocol, data can be uploaded to the free cloud platform, customer’s monitoring software or PLC configuration screen through 485 communication, and it also supports secondary development. With the built-in electronic compass, there is no longer a position requirement during installation, just ensure that it is installed horizontally. It is suitable for use in mobile occasions such as marine ships and automobile transportation, and there is no direct requirement during installation.
Data sheets
| Power supply | 10-30VDC | |||
| Max. power consumption | 0.7W | |||
| Protection class | IP54 | |||
| Output signal | RS485 | |||
| Mearsure factors | Range | Accuracy | Long-term stability | Response time |
| Wind speed | 0~40m/s | ±0.5+2%FS(60%RH,25℃) | — | 1s |
| Wind direction | 0~359° | ±3°(60%RH,25℃) | — | 1s |
| Temperature | -40℃~+80℃ | ±0.5℃(25℃) | ≤0.1℃/y | ≤25s (1m/s wind speed) |
| Humidity | 0%RH~99%RH | ±3%RH(60%RH,25℃) | ≤1%/y | ≤8s (1m/s wind speed) |
| Air pressure | 0~120kPa | ±0.15kPa@25℃ 101kPa | -0.1kPa/y | ≤2s |
| Noise | 30dB~120dB | ±0.5dB (94dB@1kHz) | ≤3dB/y | ≤3s |
| PM2.5/PM10 | 0~1000μg/m3 | ±3%FS(@100μg/m3,25℃,50%RH) | ≤1%/y | ≤90s |
| Light intensity | 0~200,000 Lux | ±7%(25℃) | ≤5%/y | ≤2s |
| Solar radiation | 0~1800W/m² | ≤±3%@150W/m² | ≤±3% | — |
| Accuracy | Resolution | Max. instantaneous rainfall | Rain sensing diameter | |
| Rainfall | ±5% | Standard 0.1mm | 24mm/min | 6cm |
Weather stations we offered
FEATURES
1. This smart ultrasonic weather station adopts a one-piece design, no extra accessories, and easy to install. It is small in size, light in weight, and easy to transport. Using high-quality anti-ultraviolet materials, long service life, can be used in harsh environments for a long time. Using a high-sensitivity probe, the signal is stable and the accuracy is high. The key components of the weather station adopt imported components, and the work is stable.
2. The wind speed and direction of this smart ultrasonic weather station are measured by ultrasonic principle, no angle limit, 360° omni-directional, and wind speed and wind direction data can be obtained at the same time. A rain meter is installed on the top, which uses the principle of optical sensing to measure rainfall, which is convenient for maintenance and not easily blocked by fallen leaves.
3. Noise module, atmospheric pressure sensor, PM2.5 and PM10 sensor can be added to measure more elements.
APPLICATIONS

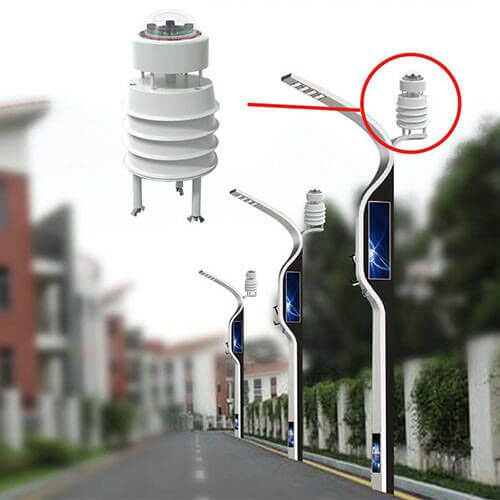

Smart ultrasonic weather station is widely used in various occasions that need to measure environmental temperature and humidity, wind speed and direction, noise, air quality, atmospheric pressure, light and rainfall, such as campuses, highways, gardens, construction sites, agriculture, etc.
