Water Level Staff
It is a device that uses an advanced processor chip as the controller. Obtain data by measuring the water level of the electrode, with extremely high accuracy and anti-interference ability. Water level gauges can be used for monitoring and control in civil projects such as underground garages, underground shopping malls, ship cabins, irrigation, and aquaculture.
- Model: RS-DR-*-1-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $136.3~$1163.7

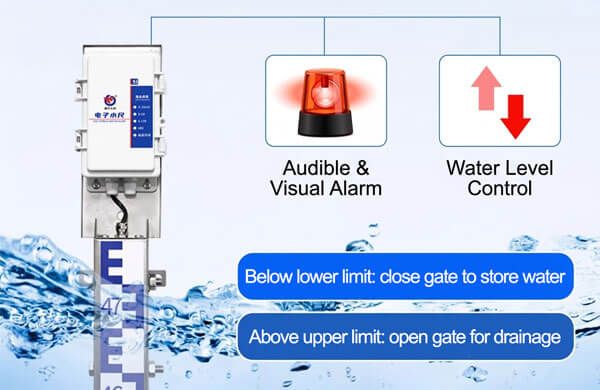

Renke Water Level Staff View
What is the best water level staff?
1. The water level staff of Renke is produced with excellent technology and uses stainless steel as the protective shell, which has strong protection and anti-interference capabilities.
2. The electronic water level staff uses high sealing materials and has a long service life. The equipment is not affected by external environments such as sludge, pollutants, and sediments.
3. The water level staff has 1 switch signal output, which can be arbitrarily associated with the alarm output or used for water level upper and lower limit control.
4. The sampling accuracy is independent of the length of the equipment. The measurement accuracy of water gauges of different lengths remains unchanged, all 1cm.
5. Multiple working modes can be modified according to the on-site conditions.
6. Optional solar power supply (20W/6Ah, 30W/20Ah are available).
7. Electronic water level staff is a new generation of digital sensor, the data is acquired by measuring the water level at the electrodes. The error will not be affected by environmental factors, but only depends on the distance between the electrodes.
Water level staff parameters
| Power supply | DC 10~30V |
|---|---|
| Measure range | 50cm, 80cm, 100cm, 150cm, 160cm, 200cm, 240cm, 250cm, 300cm, 320cm, 400cm, 480cm (and any combination of 50cm and 80cm electronic water gauge lengths) |
| Accuracy | 0.1cm/0.2cm/0.5cm/1cm (RS485 optional), 1cm (analog) |
| Resolution | 0.1cm (0.1cm/0.2cm/0.5cm accuracy), 1cm (1cm accuracy) |
| Output signal | RS485/4-20mA/0-5V/0-10V |
| Host Max. power consumption | 0.8W (RS485), 1.2W (analog) |
| Single water gauge Max. power consumption | 0.05W |
| Installation | Wall-mounted |
| Opening size | 86.2mm |
| Punch size | 10mm |
| Protection level | IP54 (host), IP68 (slave) |
Water level staff application
Leveling staff adopts advanced production technology, uses stainless steel as the shell protection material, and uses high-sealing materials for special treatment so that the product is not affected by the external environment such as mud, corrosive liquids, pollutants, and sediments.
River level staff can be used for water level monitoring in rivers, lakes, reservoirs, hydropower stations, irrigation areas, and water delivery projects. It can also be applied to the monitoring of water levels in municipal projects such as tap water, urban sewage treatment, and urban road water.
